MS610 – Tester for power steering system

  • MS610 – Tester for power steering system

  • Lượt xem: 514 ,từ ngày 22-01-2019

  • Sản phẩm này đã hết hàng...!

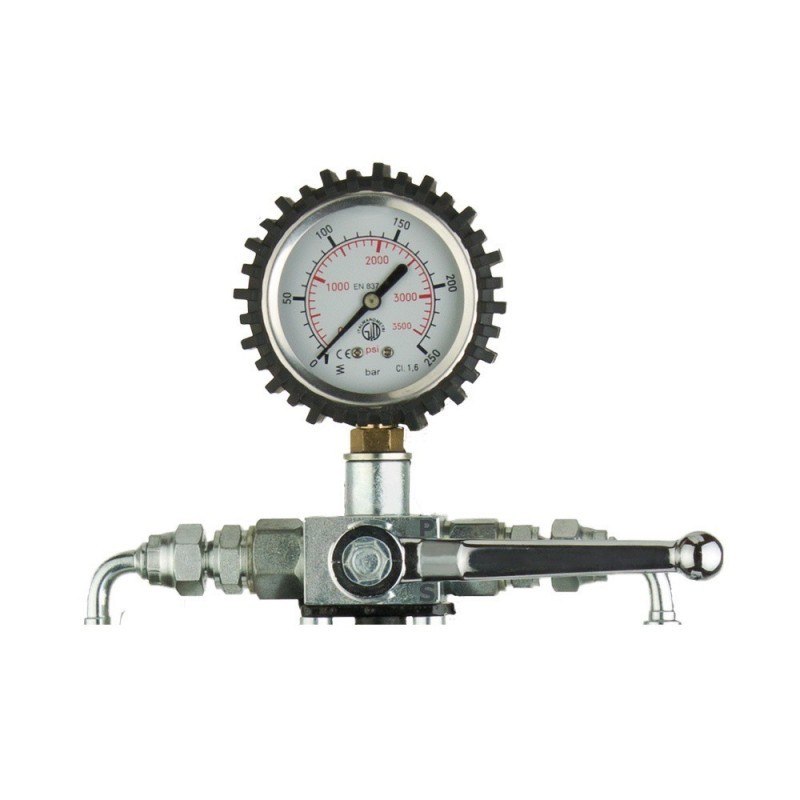

Tester for diagnostics of power steering system. The device is connected to high-pressure line to measure performance of power system elements. Testing is conducted in a car without dismounting of units.

Đặt Hàng

DETAILED DESCRIPTION

Features:

  • meets the latest requirements of contemporary service centers
  • simple operation
  • long-lasting service
  • safety and reliability
  • 1 year warranty

The equipment set includes:

  • tester
  • set of fittings
  • 2 high-pressure hoses
  • user manual

How to test power steering system?

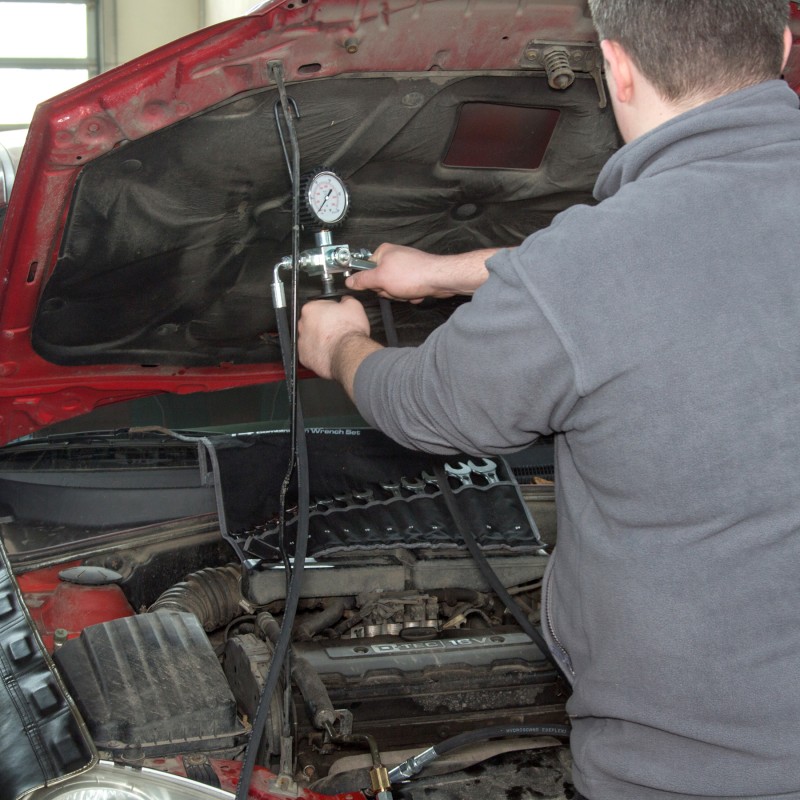

  1. Connect the tester to the pump and a high-pressure line, as indicated in the figure. Disconnect a high-pressure line from the pump, fix the reducing fittings in the pump and line. Then connect quick disconnect couplings to high-pressure hoses of the tester.
  2. Start the car engine.

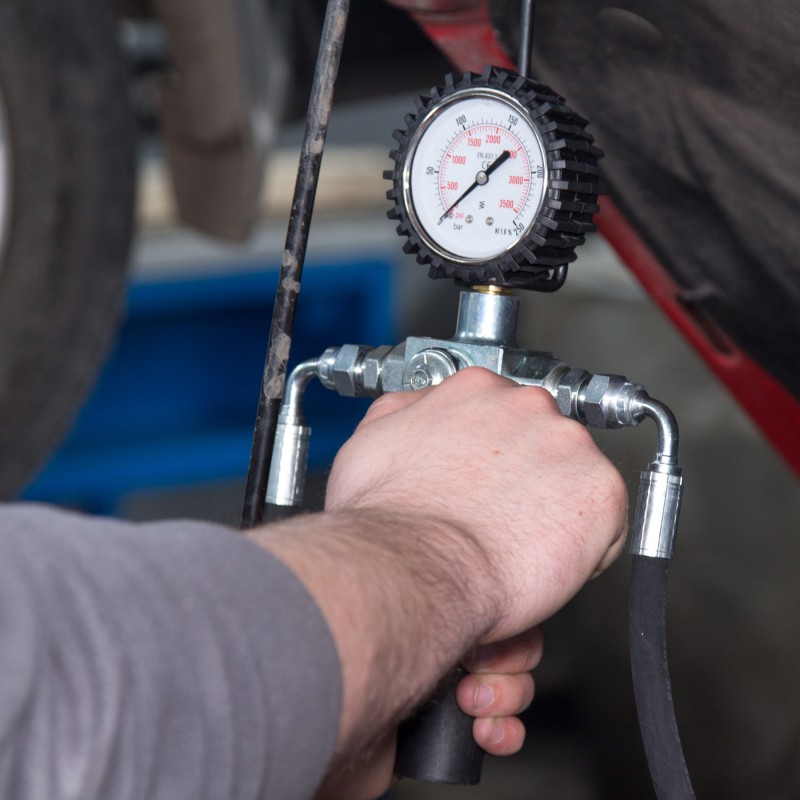

  3. Test 1. Fix the switch 2 in position S (System). Measure the pressure in car hydraulic system.
  4. Test 2. Fix the switch 2 in position P (Pump) for 5 seconds, the manometer indicates maximum pressure, generated by the pump.
  5. Test 3. Fix the switch 2 in position S (System). Rotate the steering wheel to the left or right extreme position. Measure the pressure in car hydraulic system.
  6. Test 4. Fix the switch 2 in position S (System). Rotate the steering wheel to extreme left and then to extreme right position. Measure the pressure in both positions.
  7. Stop the car engine.
  8. Disconnect the tester.
