DETAILED DESCRIPTION

Features:

• meets the latest requirements of contemporary service centers
• simple operation
• long-lasting service
• safety and reliability
• 1 year warranty

The equipment set includes:

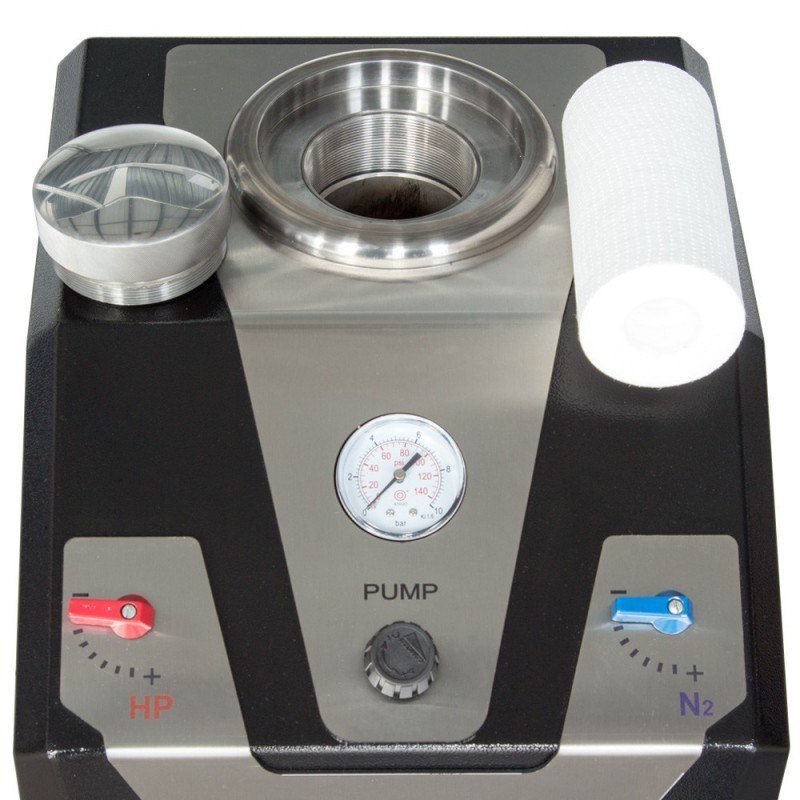

• flushing stand
• 2 hoses (connected to the stand)
• 2 universal connector (connected to the hoses)
• user manual

How to flush AC system:

• сonnect the stand to air-supply system
• fill the tank with required amount of flushing fluid
• fix polypropylene filter in the filler neck
• remove coolant out of air conditioning system and dismount components of air conditioning system, which are not to be flushed
• Connect HP and LP hoses to high-pressure and low-pressure lines of air conditioning system
• activate HP valve of the stand to provide circulation of flushing fluid and activate the pump
• purge the system with nitrogen to remove flushing fluid from air conditioning system

The first cycle is the quickest one: activate the stand for 10 minutes, then deactivate and check its filter element for contamination. If a lot of contamination is observed, replace the filter element and continue flushing. Quantity of cycles depends on contamination degree of the system, the pump can continuously work for a long time.
